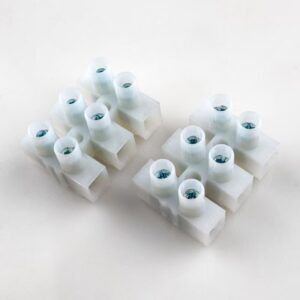

Reliable Universal Screw In Terminal Block Tin Plated Copper Nickel Plated Screws

Name: Reliable Universal Screw In Terminal Block Tin Plated Copper Nickel Plated Screws
Brand: SUZHOU POLESTAR METAL PRODUCTS CO., LTD
Availability: InStock

Grande immagine : Reliable Universal Screw In Terminal Block Tin Plated Copper Nickel Plated Screws

Dettagli:

Termini di pagamento e spedizione:

Quantità di ordine minimo:	500 pezzi

Contatto

Descrizione di prodotto dettagliata

Nome del prodotto:	Morsettiera a vite	Hardware:	chiave a brugola
Formato del disegno:	3D/CAD/DWG//STEP/PDF	Utilizzo:	Saldatura su supporto piatto in acciaio
Processo di produzione:	Fusione / Forgiatura / Lavorazione CNC / Stampaggio	Standard o non standard:	Standard
Standard:	ISO9001	Tolleranza al peso:	<>

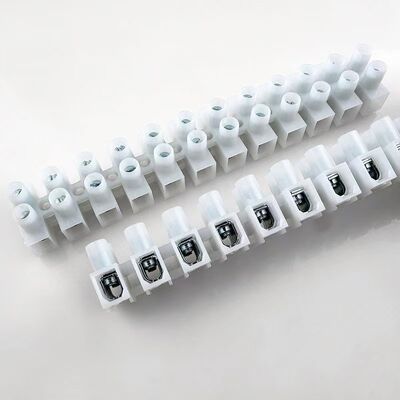

Reliable Universal Screw In Terminal Block Tin Plated Copper Nickel Plated Screws

What is a Screw In Terminal Block?

A Screw In Terminal Block is an electrical connector used to secure and join two or more wires together using screw clamping mechanism. It consists of a conductive metal part (usually copper or brass) housed inside an insulating plastic body. The wire is inserted into the terminal and fastened by tightening a screw, which applies pressure to hold the wire securely against the conductive bar, ensuring a reliable electrical connection.

Screw in terminal blocks are widely used in industrial control systems, power distribution, building wiring, and various electrical equipment due to their simple structure, high reliability, and ease of installation.

Materials

Component	Material	Description
Conductor / Metal Part	Copper / Brass / Copper Alloy	High electrical conductivity, good mechanical strength
Screw	Brass / Steel	Provides clamping force, often plated for corrosion resistance
Housing / Insulator	PA66 (Polyamide 66) / PC / Ceramic	Flame retardant, high temperature resistance, electrical insulation
Solder Tab (if applicable)	Tin Plated Copper	For PCB mounting applications

Surface Treatment

Treatment	Material Applied	Purpose
Tin Plating	Tin	Improves solderability, prevents oxidation, reduces contact resistance
Nickel Plating	Nickel	Enhances corrosion resistance, suitable for high temperature environments
Silver Plating	Silver	Maximum conductivity, used for high frequency or high current applications
Zinc Plating	Zinc	Common for steel screws to prevent rust

Specifications

Parameter	Common Range	Description
Rated Voltage	300V - 1000V	Maximum operating voltage
Rated Current	5A - 400A	Maximum current carrying capacity
Wire Gauge	30 AWG - 1000 MCM	Range of wire sizes accepted
Pitch / Spacing	3.5mm - 20mm	Distance between centers of adjacent terminals
Number of Positions	1 - 24+	Number of connection points in a single block
Operating Temperature	-40°C to +120°C	Temperature range for safe operation
Flammability Rating	UL94 V-0 / V-2	Flame retardance standard
Dielectric Strength	1500V - 4000V	Withstand voltage capability

Application Fields

Industry	Specific Applications
Industrial Automation	Control panels, PLC systems, motor control centers, sensors
Power Distribution	Switchgear, distribution boards, power supplies, transformers
Building Wiring	Lighting circuits, HVAC systems, junction boxes
Renewable Energy	Solar inverters, wind turbine controllers, battery storage systems
Transportation	Railway signaling, automotive electronics, marine equipment
HVAC	Air handling units, chiller controls, thermostat wiring
Instrumentation	Measuring devices, data acquisition systems, test equipment
Consumer Electronics	Power adapters, home appliances, audio equipment

An Excellent Case

Industrial Motor Control Center (MCC)

Scenario:
A manufacturing plant requires a reliable and safe method to connect power supply and control wiring for multiple 3-phase motors used in conveyor systems. The motors range from 2kW to 15kW, operating at 480V AC.

Solution:
Screw in terminal blocks are installed in each motor control center compartment to terminate incoming power cables, motor leads, and control wiring from PLCs and sensors.

Why Screw In Terminal Blocks are the Best Choice:

Requirement	How Screw In Terminal Block Meets It
High Current Capacity	32A to 60A rated blocks handle motor loads safely
Secure Connection	Screw clamping prevents loosening from vibration
Easy Maintenance	Wires can be easily disconnected and reconnected for motor replacement
Clear Identification	Marking accessories allow labeling of each circuit (U/V/W phases)
Safety	Finger-safe design with fully insulated housing protects technicians
Flexibility	Modular design allows adding or removing terminals as needed

Result:
The motor control center operates reliably with minimal connection failures. Maintenance technicians can quickly troubleshoot and replace motors without special tools, reducing downtime by 30% compared to previous direct-wire methods.

Summary

Screw In Terminal Blocks remain the industry standard for electrical connections due to their proven reliability, wide availability, and ease of use. Whether in heavy industrial applications or simple home wiring, they provide a secure and long-lasting connection that electricians and engineers trust worldwide.
